Aluminium Lay-in T-Shaped Ceiling

Aluminium Lay-in T-Shaped Ceiling

Material: Aluminum plate >98%

Size: 600x600mm, 600x1200mm…

Thickness: 0.6 – 0.8mm

Surface perforated D1.8mm - D2.3mm with black tissue

White standard powder coating (Ral)

Suspension frame and sync accessories

100% recycled aluminum

Certificate:

Certification/ Standard (ISO 9001-2015)

Certification/ Aluminum >98% (ASTM B209/B209M)

Certification/ Frame system standard (ASTM C635)

Acoustic ratings: αw = 0,75 (ASTM C423-2017)

Light reflectance: LR = 0,60 (ASTM E1477-1998a)

Fire ratings: Class A (ASTM E84-2019)

Guarantee: 10 years

https://austronggroup.com.vn

Product description

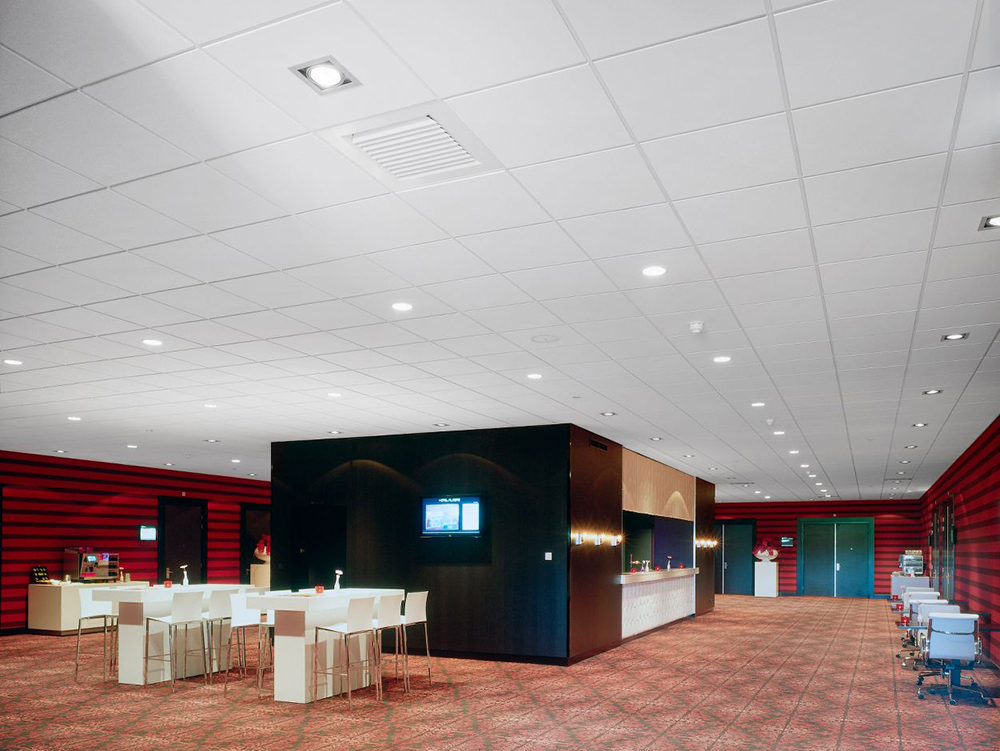

Using the exposed suspension system, Austrong Lay-in T-Shaped ceiling gives the impression of a succinct cubic. Lay-in T-Shaped ceiling uses a T-shaped carrier system to hold two opposite edges of the panels to the main frame, ensuring that the ceiling panels are aligned and balanced. With a large application in architecture and art for interior and exterior, a variety of square and rectangular Lay-in T-Shaped ceilings, made from high standard aluminium alloy and a wide range of standard colours. With a non-woven textile membrane bonded to the inside face, Austrong Lay-in T-Shaped aluminum ceiling tiles is a highly effective sound proofing and sound absorption ceiling system

Features of Austrong Lay-in T-shaped aluminum ceiling:

The Austrong Lay-in T-Shaped aluminum ceiling is perforated and equipped with a non-woven fabric for acoustic control and noise reduction. The product is easy to construct and install, does not require complicated tools and machinery. Compatible with industry standard lighting, audio speakers, fire safety, cameras, and security services etc. The product has high stability and is completely fireproof and water resistant, not oxidized, completely eliminating the aggressive factor of the environment. Austrong Group has always researched and developed to create products that are

environmentally friendly, energy-conserving, efficient and sustainable. All Austrong Group products are 100% recyclable

Aluminum Ceiling Lay-in T-Shaped Tile Application:

Is perfect solution for Office Buildings, Schools, Hospitals, Commercial centers, Sports centers, Airport terminals, Banks, Hotels, Telecommunications centers, Television centers ....

Product structure

Color and coating

Austrong Vietnam offers a wide range of colors and finishes surface. Colors are available according to the color chart below, can be made base on requirements.

Please contact Austrong Vietnam sales department.

Colours are for illustration purposes only
