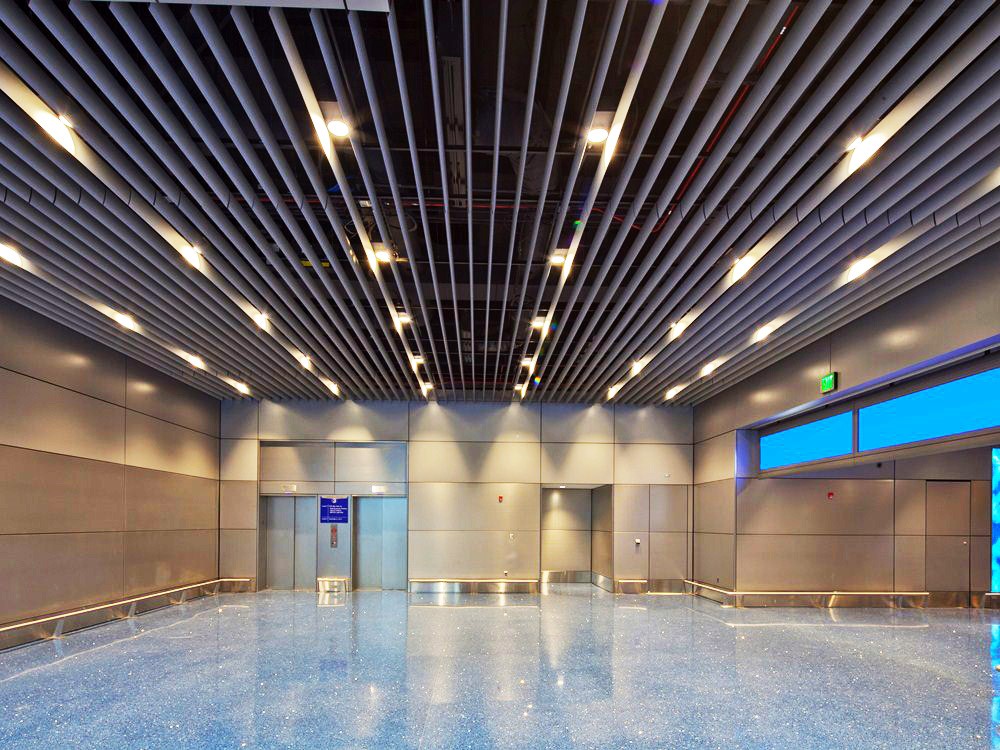

Aluminium Linear U-Bullet Ceiling

Aluminium Linear U-Bullet Ceiling

Material: Aluminum >98%

Width: 50mm

Height: 50mm - 180mm

Thickness: 0.6 – 0.8mm

Plain surface, perforated base on requirement

PE coating base on Austrong standard color chart

Suspension frame and sync accessories

100% recycled aluminum


Certification/ Standard (ISO 9001-2015)

Certification/ Aluminum >98% (ASTM B209/B209M)

Certification/ Suspension frame system standard (ASTM C635)

Light reflectance: LR = 0,60 (ASTM E1477-1998a)

Fire ratings: Class A (ASTM E84-2019)

Guarantee: 10 years

Product description

Using a linear bar suspension system, the Austrong Linear U-Bullet ceiling gives the impression of a directional design ceiling which uses panels of various lengths and widths to add interest. Austrong Linear U-Bullet ceiling uses a special carrier to hold two opposite edges of the panels to the main frame, ensuring that the ceiling panels are aligned and balanced. Suitable for a large application in architecture and art for interior and exterior.

Austrong Linear U-Bullet Aluminum Ceiling Features:

Austrong Linear U-Bullet Aluminum Ceiling System is a suspended ceiling system with a large opening, with various widths and heights, can be clipped onto the U-Shaped carrier system, the surface is finish by PE paint with many colors, lengths of panel are produced on request. Have open gap between two panels and widths according to the design of the project, the product has high aesthetics. The product is easy to construct and install, does not require complicated tools and machinery. Compatible with industry standard lighting, audio speakers, fire safety, cameras, and security services etc. The product has high stability and is completely fireproof. and water resistant, not oxidized, completely eliminating the aggressive factor of the environment. Austrong Group has always researched and developed to create products that are environmentally friendly, energy-conserving, efficient and sustainable. All Austrong Group products are 100% recyclable

Aluminum Linear U-Bullet Ceiling Tile Application:

Is perfect solution for Office Buildings, Schools, Hospitals, Commercial centers, Sports centers, Airport terminals, Banks, Hotels, Telecommunications centers, Television centers ...

Product structure

Color and coating

Austrong Vietnam offers a wide range of colors and finishes surface. Colors are available according to the color chart below, can be made base on requirements.

Please contact Austrong Vietnam sales department.

Colours are for illustration purposes only
