Product Structure: Rectangular Sun Louver
Color: Rectangular Sun Louver
Austrong Vietnam offers a wide range of colors and surface finishes. Standard colors are available in the palette below; other custom colors and finishes can be produced upon request. Please contact Austrong Vietnam’s Sales Department for more information.
Note: For additional color options, please refer to the Ral Color K5 Classic chart.
Product Information: Rectangular Sun Louver
| Product Name | Rectangular Sun Louver |
| Dimensions | Flexible by Design |
| Material Thickness | 1.0 – 3.0 (mm) |
| Main Material | A6063-T5 Aluminum |
| Surface Coating | Powder Coating Finish |
| Supporting Frame System | Aluminum, Galvanized Steel |
Quality Standards: Rectangular Sun Louve
| Quality Management System | ISO 9001-2015 |
| Material Standard | ASTM B209/B209M-21a |
| Fire Resistance Standard | QCVN 06:2022/BXD |
| Surface Coating Standard | ASTM D3359-93 |
Key Features: Rectangular Sun Louver
- Manufactured from 6063 T5 aluminum alloy with a thickness of 1.0–3.0mm, ensuring high strength and durability.
- Featuring a rectangular box-shaped profile with widths ranging from 50mm to 400mm, offering flexibility in form and proportion.

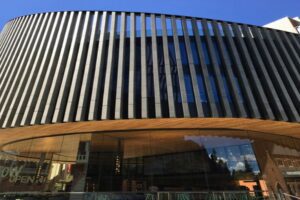

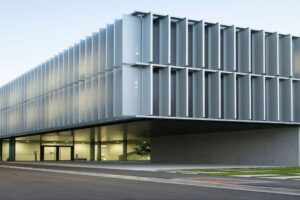

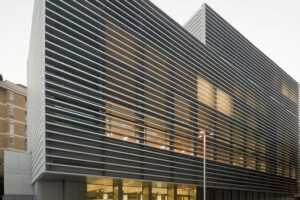

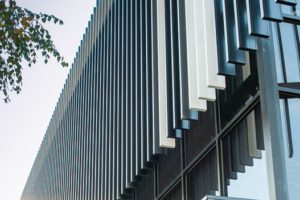

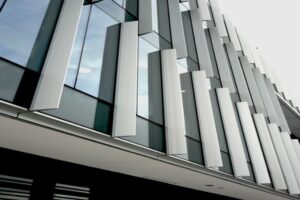

- Can be installed horizontally or vertically, depending on design requirements and sun-shading orientation.
- Equipped with a synchronized frame and accessory system, ensuring strong structural stability, easy installation and maintenance.
- Surface finished with high-quality powder coating or PVDF paint, providing excellent color retention, weather resistance, and corrosion protection.
- Fire-resistant, waterproof, and non-oxidizing, enhancing the lifespan of exterior architectural applications.
- Made from 100% recyclable materials, environmentally friendly, and compliant with green building standards.
Applications: Rectangular Sun Louver

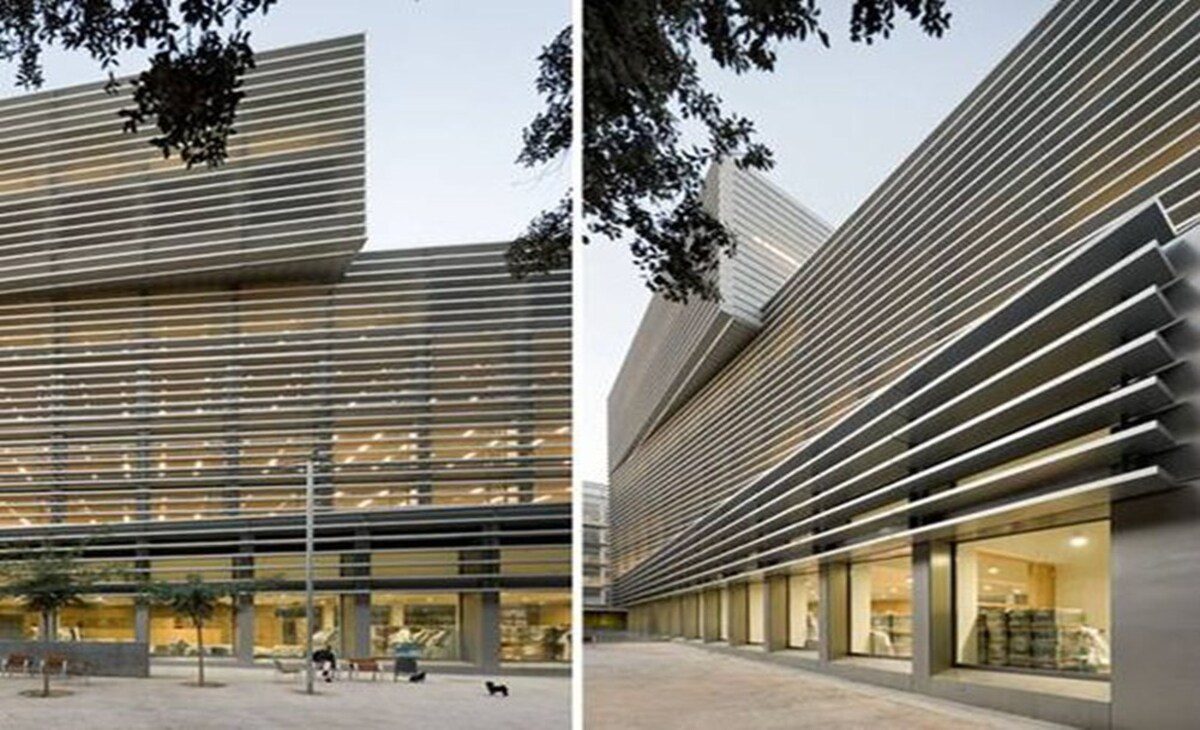

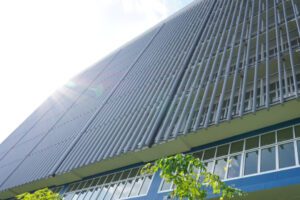

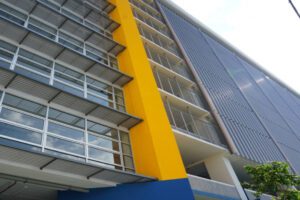

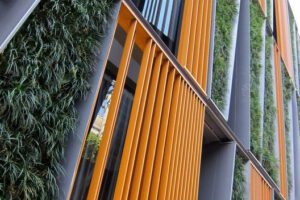

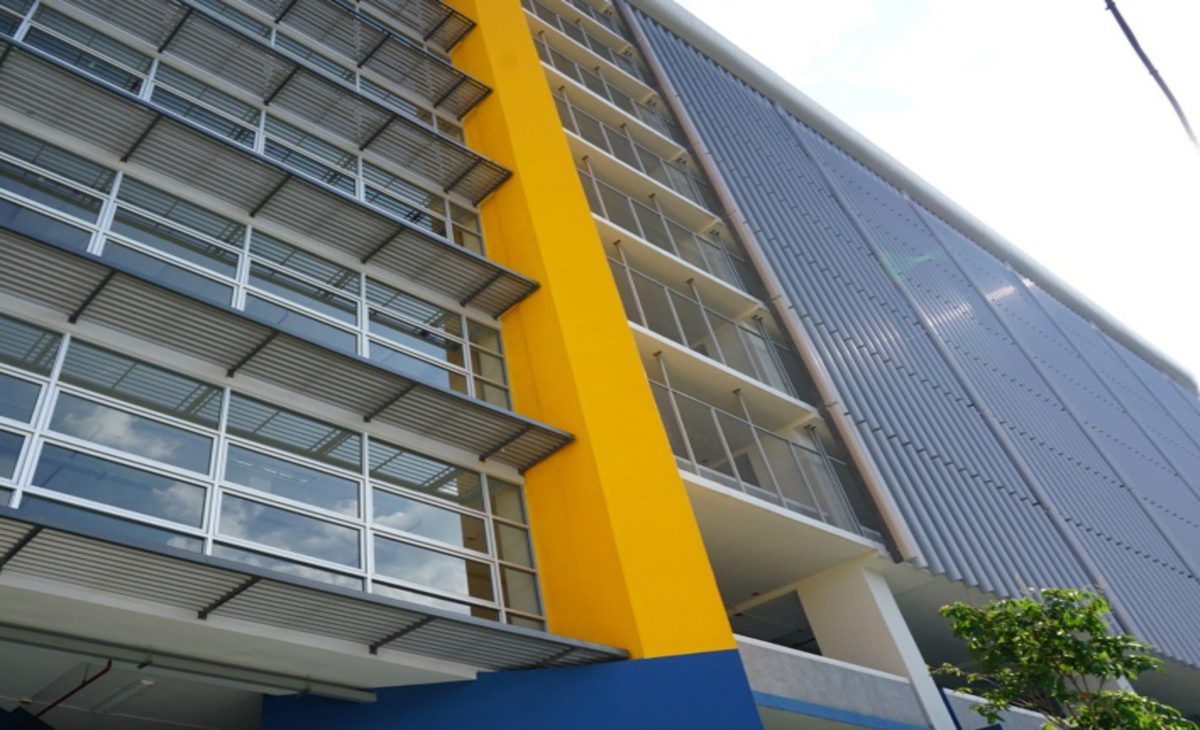

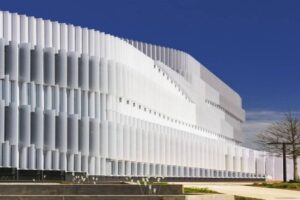

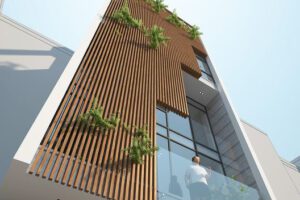

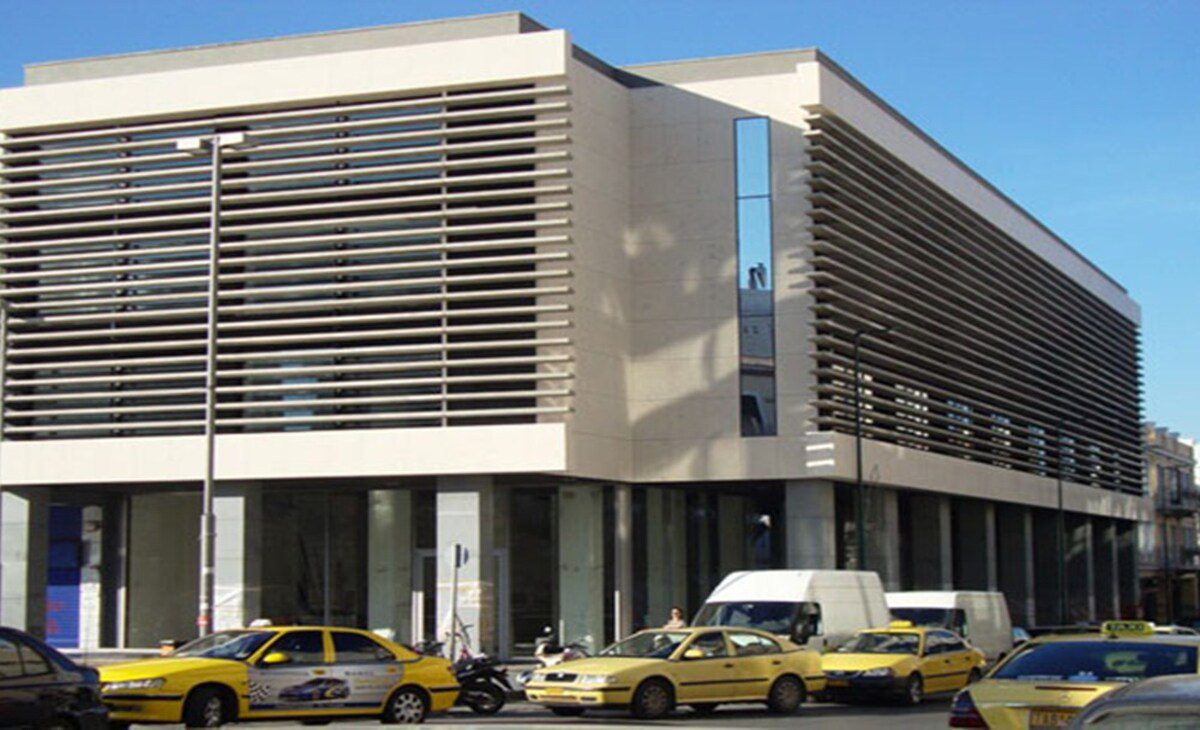

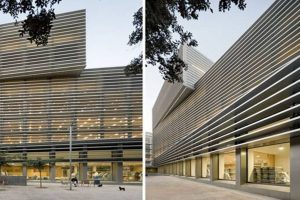

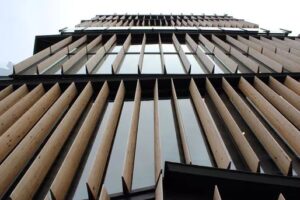

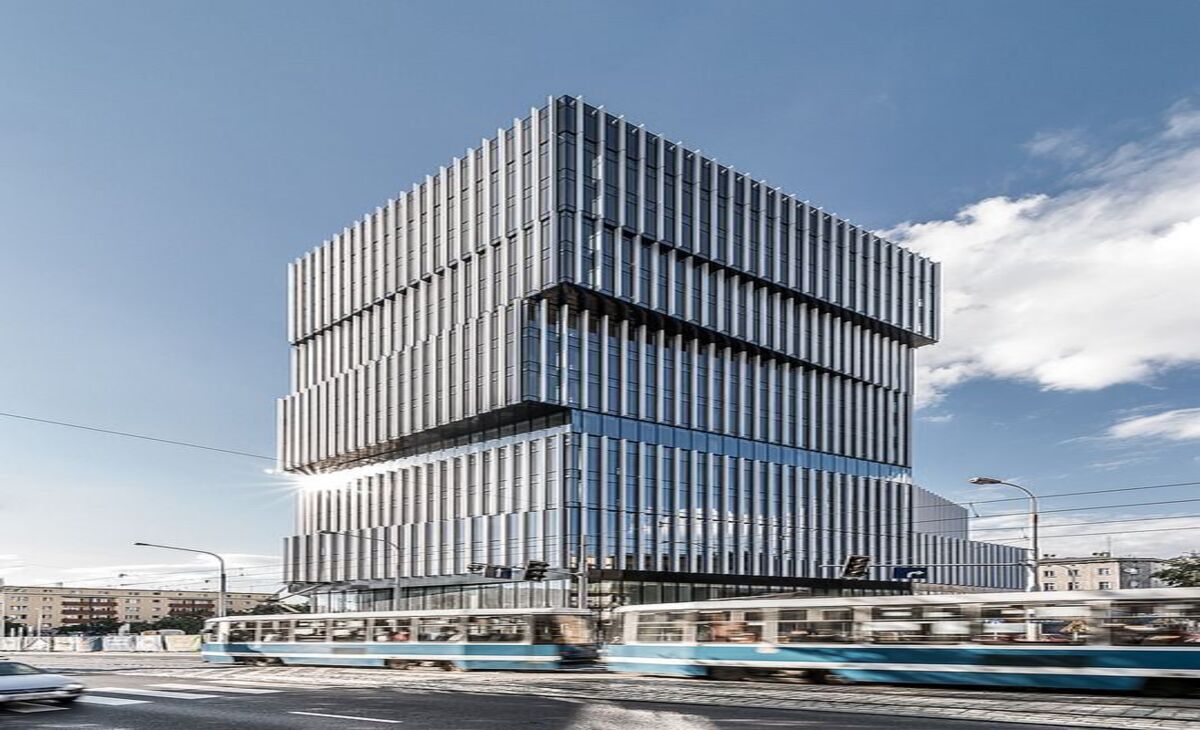

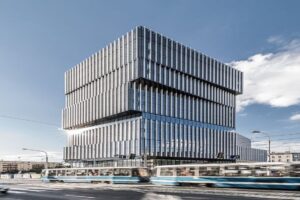

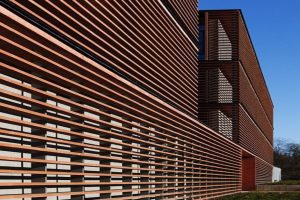

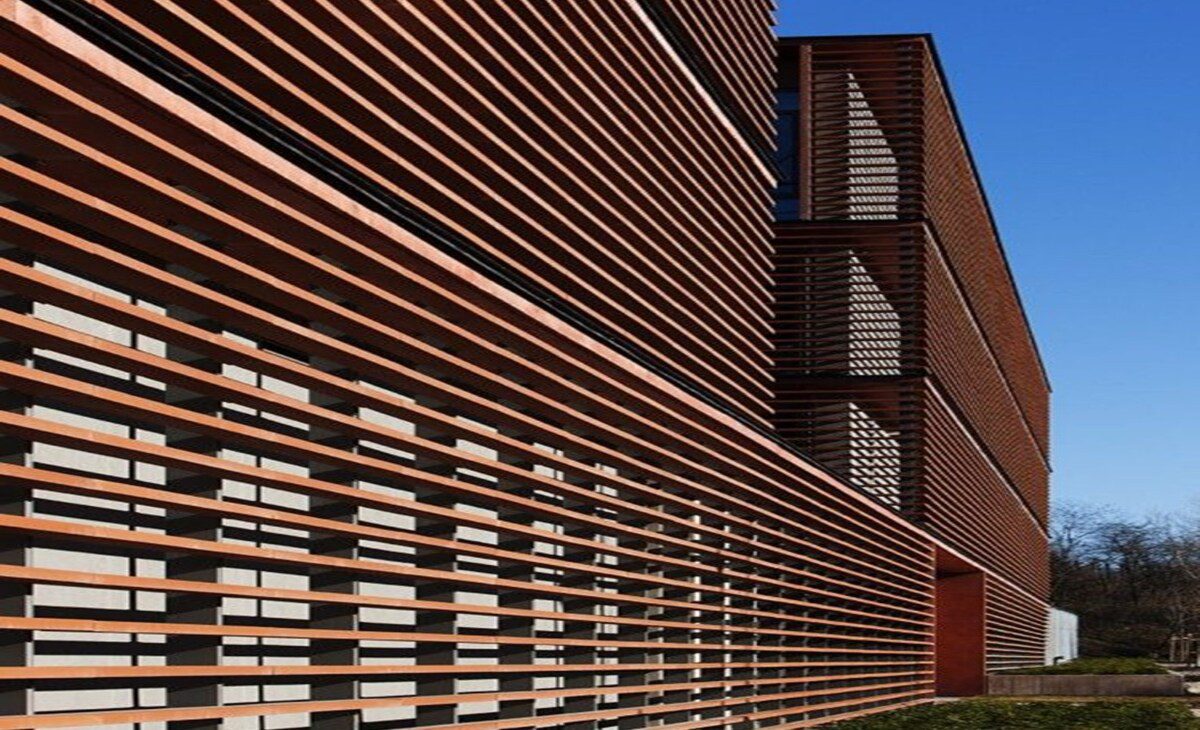

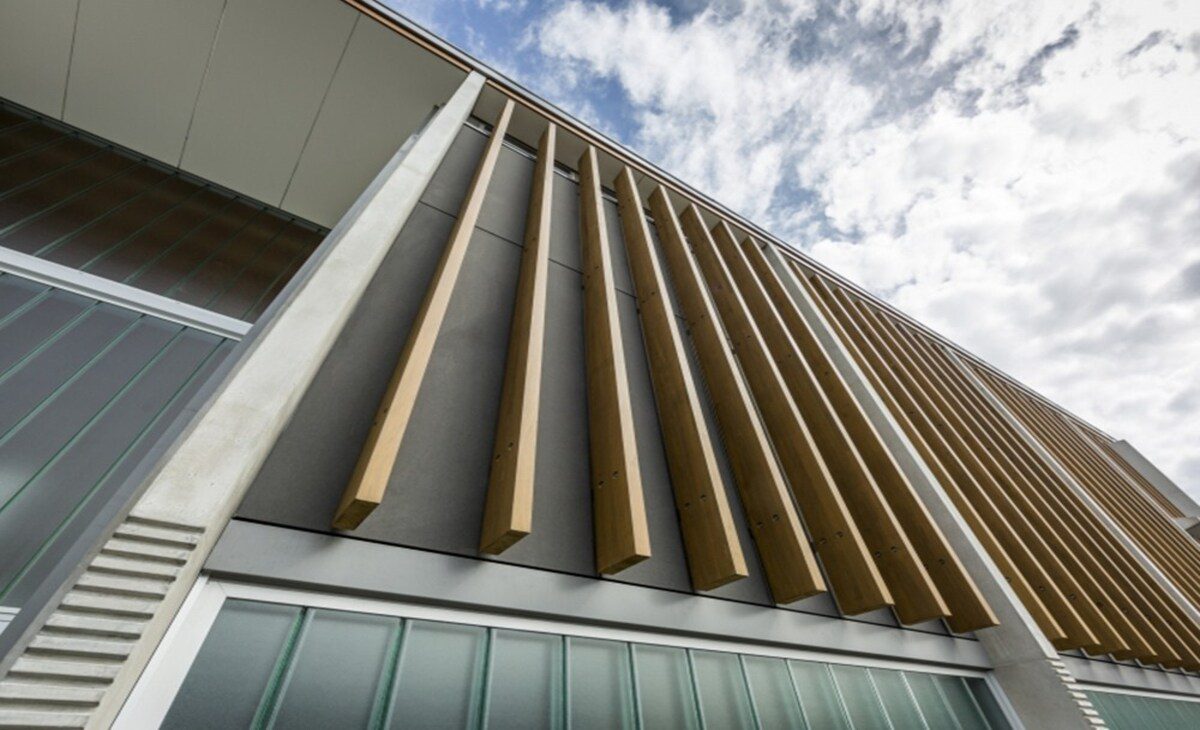

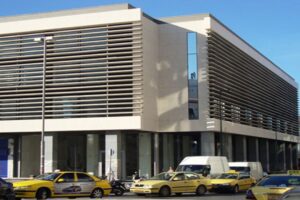

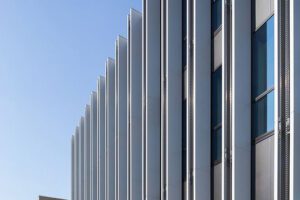

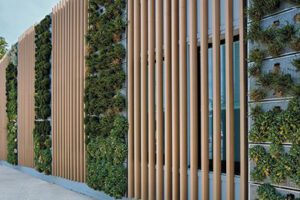

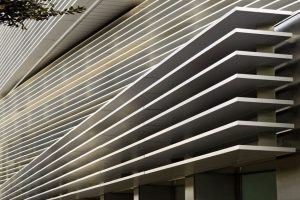

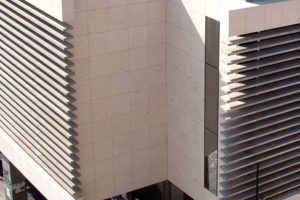

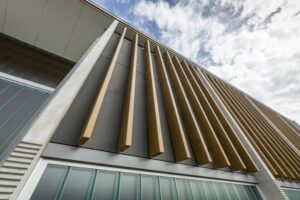

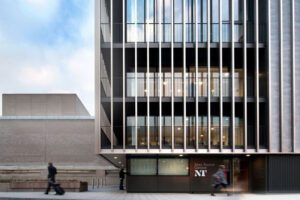

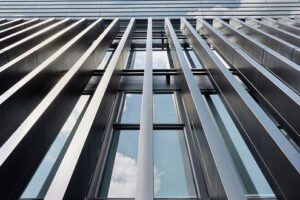

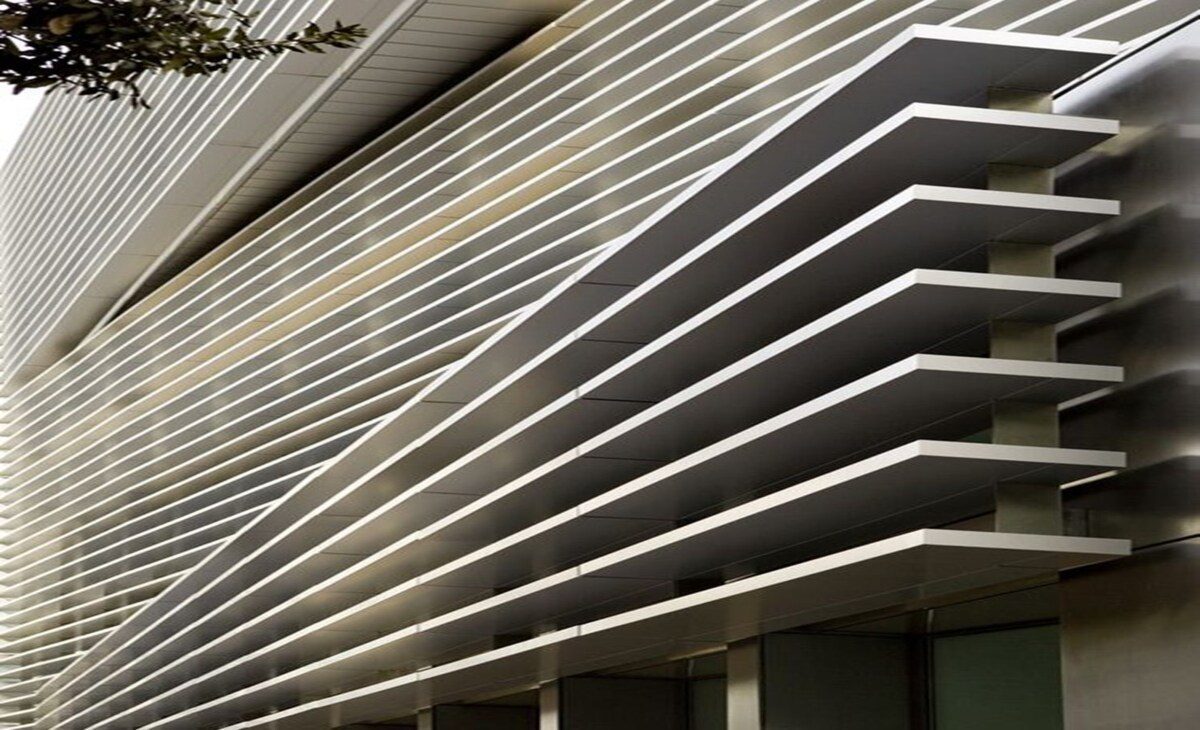

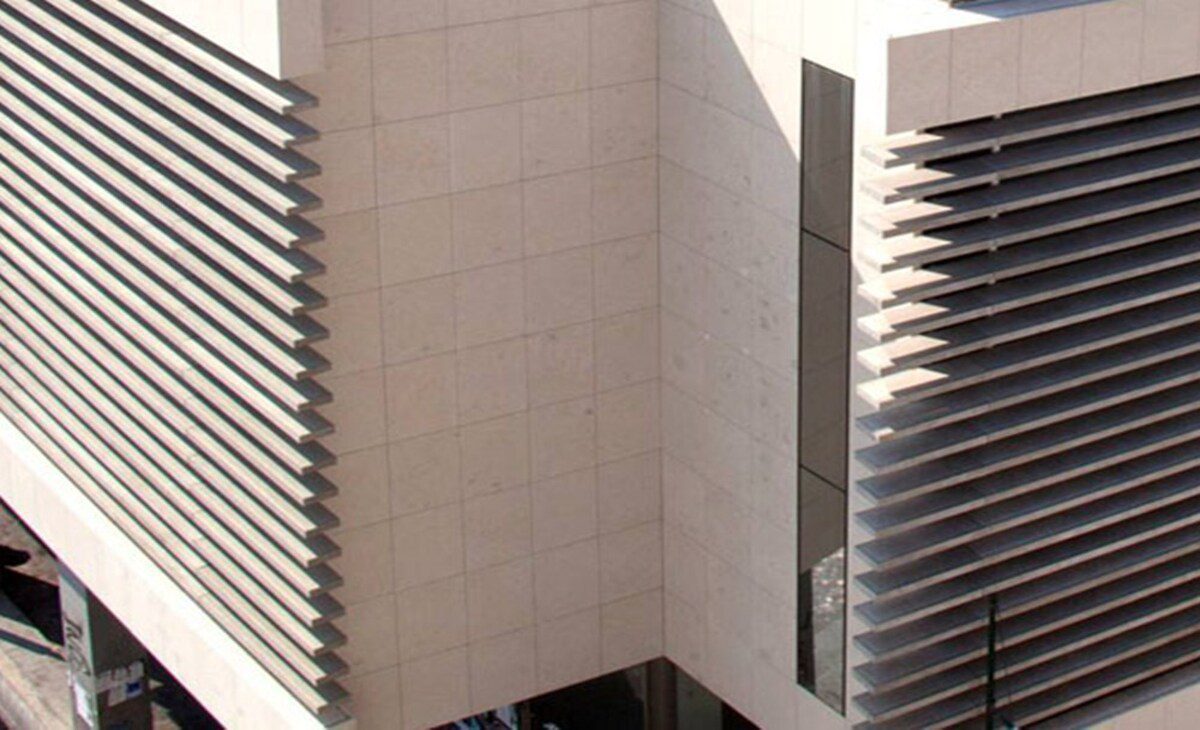

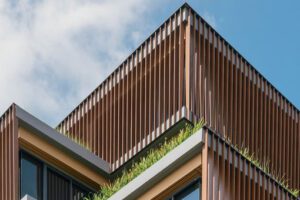

Ideal for façade shading applications, reducing building heat gain and enhancing architectural aesthetics — suitable for office towers, schools, hospitals, research institutes, commercial centers, sports complexes, railway stations, airports, bus terminals, hotels, resorts, banks, telecommunication and broadcasting centers, and other public buildings.
